if..then..else, case (switch), while, for etc., into equivalent assembly language sequences. This chapter also discusses techniques you can use to improve the performance of these control structures. The sections below that have a "*" prefix are essential. Those sections with a "o" discuss advanced topics that you may want to put off for a while.
if..then..else statement in Pascal:
IF (condition is true) THEN stmt1 ELSE stmt2 ;
Assembly language, as usual, offers much more flexibility when dealing with conditional statements. Consider the following Pascal statement:
IF ((X<Y) and (Z > T)) or (A <> B) THEN stmt1;
A "brute force" approach to converting this statement into assembly language might produce:
mov cl, 1 ;Assume true
mov ax, X
cmp ax, Y
jl IsTrue
mov cl, 0 ;This one's false
IsTrue: mov ax, Z
cmp ax, T
jg AndTrue
mov cl, 0 ;It's false now
AndTrue: mov al, A
cmp al, B
je OrFalse
mov cl, 1 ;Its true if A <> B
OrFalse: cmp cl, 1
jne SkipStmt1
<Code for stmt1 goes here>
SkipStmt1:
As you can see, it takes a considerable number of conditional statements just to process the expression in the example above. This roughly corresponds to the (equivalent) Pascal statements:
cl := true;
IF (X >= Y) then cl := false;
IF (Z <= T) then cl := false;
IF (A <> B) THEN cl := true;
IF (CL = true) then stmt1;
Now compare this with the following "improved" code:
mov ax, A
cmp ax, B
jne DoStmt
mov ax, X
cmp ax, Y
jnl SkipStmt
mov ax, Z
cmp ax, T
jng SkipStmt
DoStmt:
<Place code for Stmt1 here>
SkipStmt:
Two things should be apparent from the code sequences above: first, a single conditional statement in Pascal may require several conditional jumps in assembly language; second, organization of complex expressions in a conditional sequence can affect the efficiency of the code. Therefore, care should be exercised when dealing with conditional sequences in assembly language.
Conditional statements may be broken down into three basic categories: if..then..else statements, case statements, and indirect jumps. The following sections will describe these program structures, how to use them, and how to write them in assembly language.

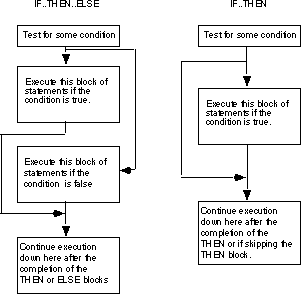

if..then or if..then..else statement. These two statements take the following form shown below:
The if..then statement is just a special case of the if..then..else statement (with an empty ELSE block). Therefore, we'll only consider the more general if..then..else form. The basic implementation of an if..then..else statement in 80x86 assembly language looks something like this:
{Sequence of statements to test some condition}
Jcc ElseCode
{Sequence of statements corresponding to the THEN block}
jmp EndOfIF
ElseCode:
{Sequence of statements corresponding to the ELSE block}
EndOfIF:
Note: Jcc represents some conditional jump instruction.
For example, to convert the Pascal statement:
IF (a=b) then c := d else b := b + 1;
to assembly language, you could use the following 80x86 code:
mov ax, a
cmp ax, b
jne ElseBlk
mov ax, d
mov c, ax
jmp EndOfIf
ElseBlk:
inc b
EndOfIf:
For simple expressions like (A=B) generating the proper code for an if..then..else statement is almost trivial. Should the expression become more complex, the associated assembly language code complexity increases as well. Consider the following if statement presented earlier:
IF ((X > Y) and (Z < T)) or (A<>B) THEN C := D;
When processing complex if statements such as this one, you'll find the conversion task easier if you break this if statement into a sequence of three different if statements as follows:
IF (A<>B) THEN C := D IF (X > Y) THEN IF (Z < T) THEN C := D;
This conversion comes from the following Pascal equivalences:
IF (expr1 AND expr2) THEN stmt;
is equivalent to
IF (expr1) THEN IF (expr2) THEN stmt;
and
IF (expr1 OR expr2) THEN stmt;
is equivalent to
IF (expr1) THEN stmt; IF (expr2) THEN stmt;
In assembly language, the former if statement becomes:
mov ax, A
cmp ax, B
jne DoIF
mov ax, X
cmp ax, Y
jng EndOfIf
mov ax, Z
cmp ax, T
jnl EndOfIf
DoIf:
mov ax, D
mov C, ax
EndOfIF:
As you can probably tell, the code necessary to test a condition can easily become more complex than the statements appearing in the else and then blocks. Although it seems somewhat paradoxical that it may take more effort to test a condition than to act upon the results of that condition, it happens all the time. Therefore, you should be prepared for this situation.
Probably the biggest problem with the implementation of complex conditional statements in assembly language is trying to figure out what you've done after you've written the code. Probably the biggest advantage high level languages offer over assembly language is that expressions are much easier to read and comprehend in a high level language. The HLL version is self-documenting whereas assembly language tends to hide the true nature of the code. Therefore, well-written comments are an essential ingredient to assembly language implementations of if..then..else statements. An elegant implementation of the example above is:
; IF ((X > Y) AND (Z < T)) OR (A <> B) THEN C := D;
; Implemented as:
; IF (A <> B) THEN GOTO DoIF;
mov ax, A
cmp ax, B
jne DoIF
; IF NOT (X > Y) THEN GOTO EndOfIF;
mov ax, X
cmp ax, Y
jng EndOfIf
; IF NOT (Z < T) THEN GOTO EndOfIF ;
mov ax, Z
cmp ax, T
jnl EndOfIf
; THEN Block:
DoIf: mov ax, D
mov C, ax
; End of IF statement
EndOfIF:
Admittedly, this appears to be going overboard for such a simple example. The following would probably suffice:
; IF ((X > Y) AND (Z < T)) OR (A <> B) THEN C := D;
; Test the boolean expression:
mov ax, A
cmp ax, B
jne DoIF
mov ax, X
cmp ax, Y
jng EndOfIf
mov ax, Z
cmp ax, T
jnl EndOfIf
; THEN Block:
DoIf: mov ax, D
mov C, ax
; End of IF statement
EndOfIF:
However, as your if statements become complex, the density (and quality) of your comments become more and more important.
